Acoustic Kits for Mitsubishi VRF & Heat Pump Units
Bolt-on noise reduction kits developed in partnership with Mitsubishi Electric — 8dBA rated, contractor-installable, and available for a wide range of Mitsubishi models.
Request a QuoteWHY CHOOSE KITS
The right choice for your installation
Acoustic kits are the right choice when a smaller noise reduction is required and a full enclosure isn't necessary. Developed exclusively with Mitsubishi Electric and tested in their anechoic chamber, they offer a practical, space-saving solution that can be fitted by on-site contractors without specialist installation.
Space-saving
Fits directly onto the unit without the footprint of a full enclosure. Ideal where space is limited or access needs to be maintained around the unit.
Contractor-friendly installation
No specialist installation team required. Kits come with full installation instructions and can be fitted by your on-site contractors.
Cost-effective
Where 8dBA reduction meets your noise requirements, kits offer a more cost-effective solution than a full bespoke enclosure.
Maintains unit access
Designed to allow continued service and maintenance access to the unit — no need to remove the kit for routine servicing.
COMPATIBLE MODELS
Is your unit compatible?
Our acoustic kits are available for the following Mitsubishi Electric models. If your model isn't listed, get in touch — we may be able to help.
Full kit – 8dBA rated (7dBA for CAHV & QAHV models)
YJM series
Full kit · 8dBA rated
YLM / YKB series
Full kit · 8dBA rated
CAHV-P500
Full kit · 7dBA rated
QAHV-N560
Full kit · 7dBA rated
MEHP series
Full kit · 8dBA rated

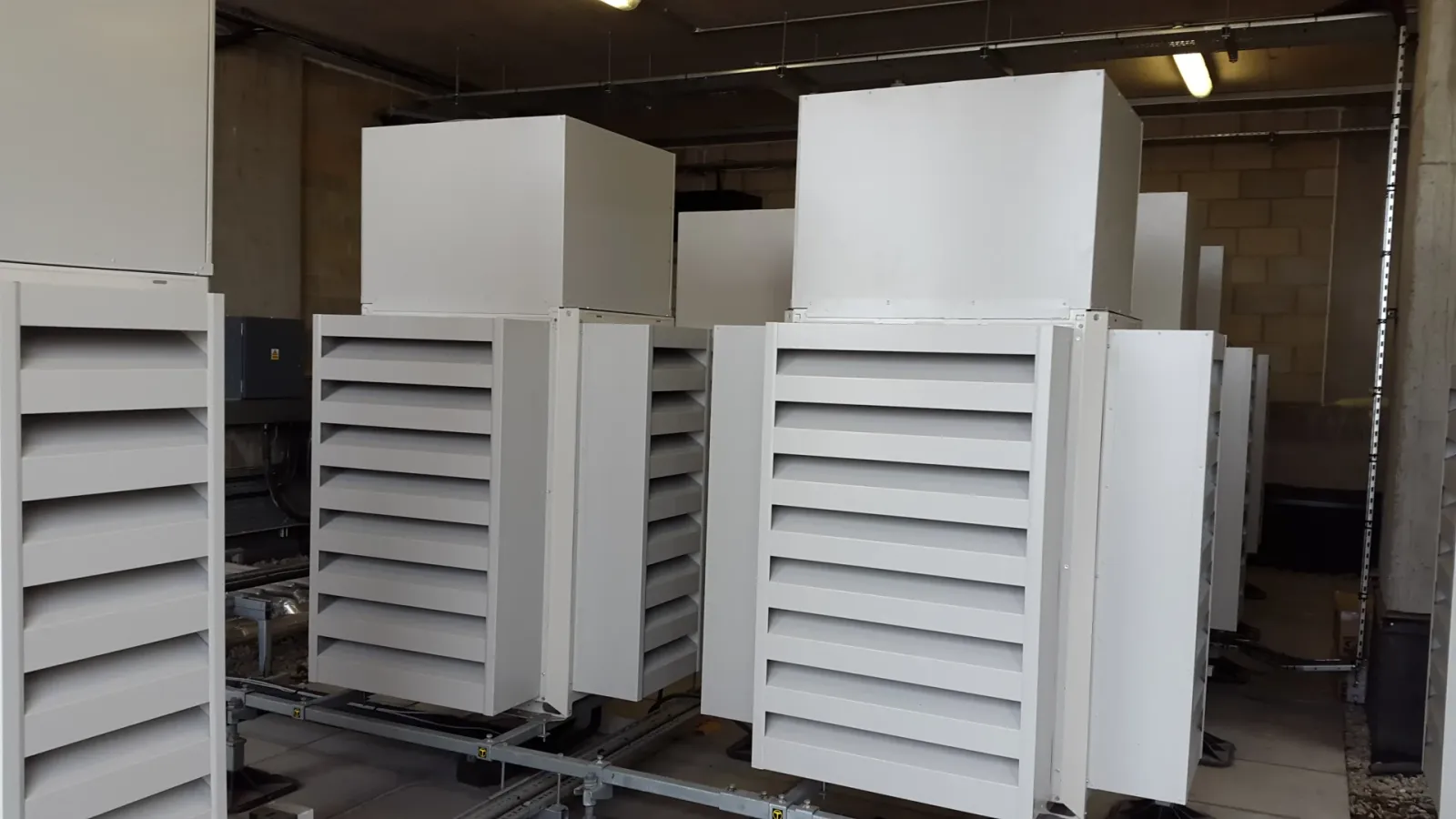

Each kit uses acoustic absorption to reduce noise at the two main sound emission points on a Mitsubishi unit — the inlet coils and the fan discharge.
Inlet Louvres
Fitted to each side of the unit that has an exposed inlet coil. As air is drawn through the louvre, the acoustic material absorbs sound before it radiates outward.
Top Attenuator
Fitted to each fan on the top of the unit. As air is discharged upward through the fan, it passes through the attenuator which absorbs the sound.
Result — combined full kit achieves 8dBA noise reduction (7dBA on CAHV and QAHV models). Top attenuator only achieves 4dBA.
FITTING THE KIT
Installation
Who installs
Installed by customers or on-site contractors — no specialist team required.
Instructions included
Full installation instructions provided with every kit.
GETTING STARTED
How to order
From initial enquiry to delivery in approximately 4–5 weeks.
Enquiry
Contact us with your Mitsubishi model and site details
Confirmation
We confirm compatibility and advise on full kit or top attenuator only
Order
Kit is ordered and goes into production
Delivery
Kit delivered to site with installation instructions
Ready to get started?
Contact our team for a consultation and we'll assess your requirements.
